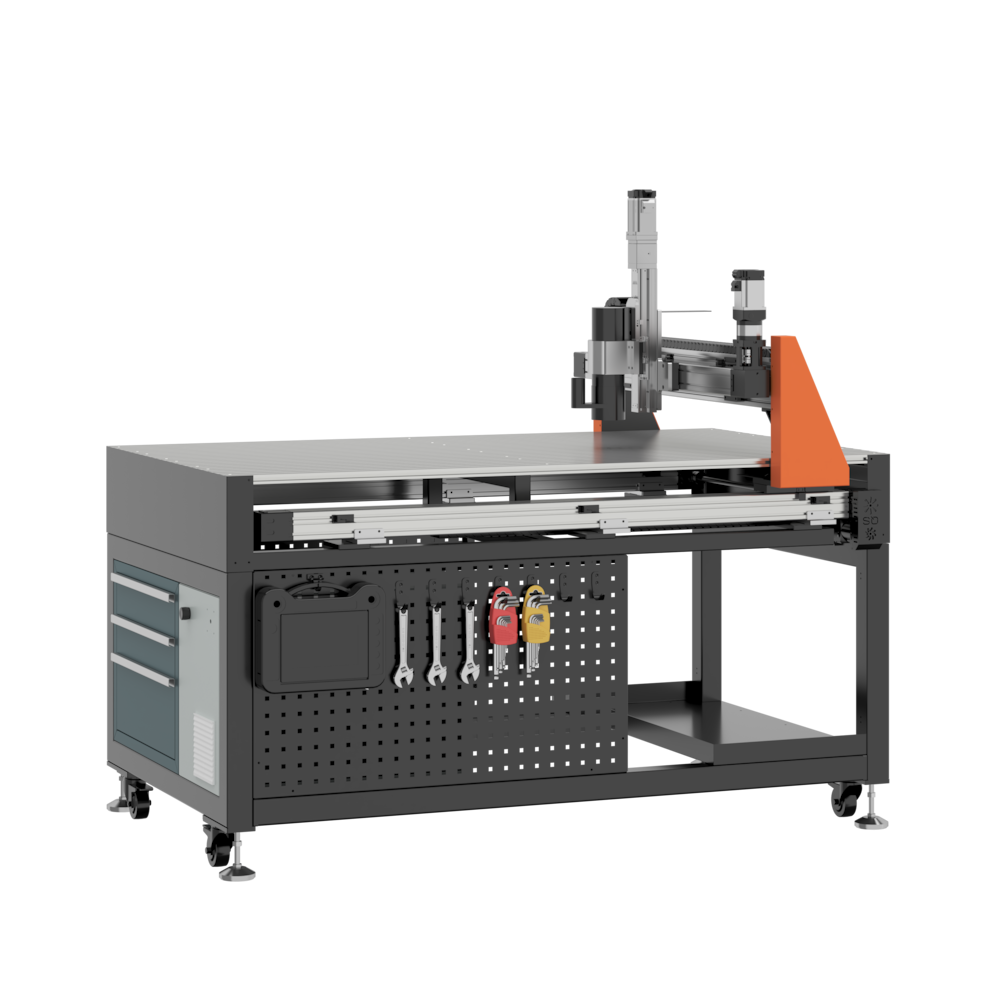

Benchtop 3-Axis CNC Engraving Machine

Precision Engraving. All in One Station. 1. Large Working Area:650×1200 mm travel with 200 mm Z clearance handles large panels and thick workpieces 2. High Precision, Consistent Quality 3. Fast & Productive:±0.002 in 4. Gantry Frame, Solid Rigidity:19.7 in/s 5. 10 kg Z Load, Ready to Expand 6. Fully Sealed Drive, Low Maintenance:Fully enclosed belt (X/Y) and ball-screw (Z) transmission 7. Integrated Cabinet, Tidy Storage:3-drawer cabinet + pegboard tool wall + open shelf; casters with leveling feet 8. Dedicated CNC Control, Easy to Operate:Dedicated CNC system with USB-B / USB-C and 4 GB storage 9. Expert Support, Worry-Free Service:Professional team for training and after-sales support
Item ID
X/Y/Z Working Area
Repeatability
Z-Axis Tool Load
Spindle Power
Collet
Storage
Power Supply
Worktop
Overall Dimensions
Weight
Add To Cart
1 unit+
G-FS-S650-1200-200-EF-MSV
25.6 × 47.2 × 7.9 in±0.002 in22.0 lb1.5 kWER164 GB220 VAluminum profile with holes / T-slots65.4 × 42.3 × 60.2 in440.9 lb
-
unit
Add
Out Of Stock
